LLRP::CElement Class Reference
[Core LTK Library classes and functions]

This is the base class for all parameter and message types. More...

#include <ltkcpp_base.h>

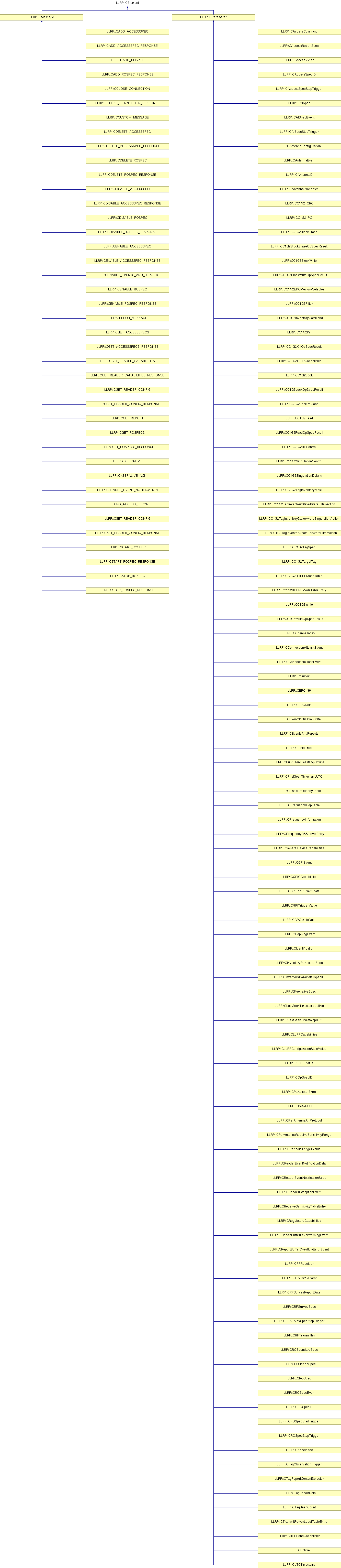

Inheritance diagram for LLRP::CElement:

List of all members.

Public Member Functions
void	addSubParameterToAllList (CParameter *pParameter)
	Add a subparameter to m_listAllSubParameters. Called by the accessor functions setXXX and addXXX.
void	removeSubParameterFromAllList (CParameter *pParameter)
	Delete a subparameter from m_listAllSubParameters. Called by the accessor functions setXXX (to remove prior reference) clearXXX().
void	clearSubParameterList (tListOfParameters *pParameterList)
	Clear a list of subparameters. For each entry apply removeSubParameter().
int	walk (int(*pFunc)(const CElement *pElement, void *pArg), void *pArg, int iDepth, int nMaxDepth) const
	Recursive tree walk. The callback is invoked for each element.
EResultCode	toXMLString (char *pBuffer, int nBuffer)
	Format an element as XML text.
virtual void	decodeFields (CDecoderStream *pDecoderStream)=0
	Virtual function provided by each specific element type to decode fields (simple values). Leaves pDecoderStream at first subparameter.
virtual void	assimilateSubParameters (CErrorDetails *pError)=0
	Assimilates the decoded sub-parameters into m_listAllSubParameters.
virtual void	encode (CEncoderStream *pEncoderStream) const =0
	Encode fields and subparameters.
Public Attributes
const CTypeDescriptor *	m_pType
	The type descriptor desribing this element.
CElement *	m_pParent
	Element that encloses this one, NULL if this is top-level element.
tListOfParameters	m_listAllSubParameters
	List of all sub elements.

---

Detailed Description

This is the base class for all parameter and message types.

CElement

During decode, all subparameters found are entered on m_listAllSubParameters. Then the element's assimilateSubParameters() member function is called to iterate through the list and attach the parameters to specific fields.

The m_listAllSubParameters is a secondary reference to all the subparameters. When the element is destructed all parameters referenced by m_listAllSubParameters are deleted. The C++ intrinsic destructors take care of deleting the list itself.

During destruct the specific fields are not processed. The fields that are lists are automatically desctructed. So are the fields that are array types (i.e. utf8v) are also automatically destructed. The fields that are simple pointers are simply ignored.

This works because every parameter referenced by specific fields is also referenced by m_listAllSubParameters.

Definition at line 974 of file ltkcpp_base.h.

---

Member Function Documentation

void LLRP::CElement::addSubParameterToAllList (  CParameter *  pParameter  )

Add a subparameter to m_listAllSubParameters. Called by the accessor functions setXXX and addXXX. Parameters: [in]  pParameter  The list of sub-parameteters to add Returns: void Definition at line 49 of file ltkcpp_element.cpp. References m_listAllSubParameters.

virtual void LLRP::CElement::assimilateSubParameters (  CErrorDetails *  pError  )  [pure virtual]

Assimilates the decoded sub-parameters into m_listAllSubParameters. After fields are decoded, the CDecoder itself takes care of gathering the subparameters into m_listAllSubParameters. Once the end of the enclosing TLV (or message) is reached this assimilateSubParameters() function is called to create parameter refrences from the primary member variables. Parameters: [out]  pError  Error details for encoded stream Implemented in LLRP::CCUSTOM_MESSAGE, LLRP::CGET_READER_CAPABILITIES, LLRP::CGET_READER_CAPABILITIES_RESPONSE, LLRP::CADD_ROSPEC, LLRP::CADD_ROSPEC_RESPONSE, LLRP::CDELETE_ROSPEC, LLRP::CDELETE_ROSPEC_RESPONSE, LLRP::CSTART_ROSPEC, LLRP::CSTART_ROSPEC_RESPONSE, LLRP::CSTOP_ROSPEC, LLRP::CSTOP_ROSPEC_RESPONSE, LLRP::CENABLE_ROSPEC, LLRP::CENABLE_ROSPEC_RESPONSE, LLRP::CDISABLE_ROSPEC, LLRP::CDISABLE_ROSPEC_RESPONSE, LLRP::CGET_ROSPECS, LLRP::CGET_ROSPECS_RESPONSE, LLRP::CADD_ACCESSSPEC, LLRP::CADD_ACCESSSPEC_RESPONSE, LLRP::CDELETE_ACCESSSPEC, LLRP::CDELETE_ACCESSSPEC_RESPONSE, LLRP::CENABLE_ACCESSSPEC, LLRP::CENABLE_ACCESSSPEC_RESPONSE, LLRP::CDISABLE_ACCESSSPEC, LLRP::CDISABLE_ACCESSSPEC_RESPONSE, LLRP::CGET_ACCESSSPECS, LLRP::CGET_ACCESSSPECS_RESPONSE, LLRP::CGET_READER_CONFIG, LLRP::CGET_READER_CONFIG_RESPONSE, LLRP::CSET_READER_CONFIG, LLRP::CSET_READER_CONFIG_RESPONSE, LLRP::CCLOSE_CONNECTION, LLRP::CCLOSE_CONNECTION_RESPONSE, LLRP::CGET_REPORT, LLRP::CRO_ACCESS_REPORT, LLRP::CKEEPALIVE, LLRP::CKEEPALIVE_ACK, LLRP::CREADER_EVENT_NOTIFICATION, LLRP::CENABLE_EVENTS_AND_REPORTS, LLRP::CERROR_MESSAGE, LLRP::CUTCTimestamp, LLRP::CUptime, LLRP::CCustom, LLRP::CGeneralDeviceCapabilities, LLRP::CReceiveSensitivityTableEntry, LLRP::CPerAntennaReceiveSensitivityRange, LLRP::CPerAntennaAirProtocol, LLRP::CGPIOCapabilities, LLRP::CLLRPCapabilities, LLRP::CRegulatoryCapabilities, LLRP::CUHFBandCapabilities, LLRP::CTransmitPowerLevelTableEntry, LLRP::CFrequencyInformation, LLRP::CFrequencyHopTable, LLRP::CFixedFrequencyTable, LLRP::CROSpec, LLRP::CROBoundarySpec, LLRP::CROSpecStartTrigger, LLRP::CPeriodicTriggerValue, LLRP::CGPITriggerValue, LLRP::CROSpecStopTrigger, LLRP::CAISpec, LLRP::CAISpecStopTrigger, LLRP::CTagObservationTrigger, LLRP::CInventoryParameterSpec, LLRP::CRFSurveySpec, LLRP::CRFSurveySpecStopTrigger, LLRP::CAccessSpec, LLRP::CAccessSpecStopTrigger, LLRP::CAccessCommand, LLRP::CLLRPConfigurationStateValue, LLRP::CIdentification, LLRP::CGPOWriteData, LLRP::CKeepaliveSpec, LLRP::CAntennaProperties, LLRP::CAntennaConfiguration, LLRP::CRFReceiver, LLRP::CRFTransmitter, LLRP::CGPIPortCurrentState, LLRP::CEventsAndReports, LLRP::CROReportSpec, LLRP::CTagReportContentSelector, LLRP::CAccessReportSpec, LLRP::CTagReportData, LLRP::CEPCData, LLRP::CEPC_96, LLRP::CROSpecID, LLRP::CSpecIndex, LLRP::CInventoryParameterSpecID, LLRP::CAntennaID, LLRP::CPeakRSSI, LLRP::CChannelIndex, LLRP::CFirstSeenTimestampUTC, LLRP::CFirstSeenTimestampUptime, LLRP::CLastSeenTimestampUTC, LLRP::CLastSeenTimestampUptime, LLRP::CTagSeenCount, LLRP::CAccessSpecID, LLRP::CRFSurveyReportData, LLRP::CFrequencyRSSILevelEntry, LLRP::CReaderEventNotificationSpec, LLRP::CEventNotificationState, LLRP::CReaderEventNotificationData, LLRP::CHoppingEvent, LLRP::CGPIEvent, LLRP::CROSpecEvent, LLRP::CReportBufferLevelWarningEvent, LLRP::CReportBufferOverflowErrorEvent, LLRP::CReaderExceptionEvent, LLRP::COpSpecID, LLRP::CRFSurveyEvent, LLRP::CAISpecEvent, LLRP::CAntennaEvent, LLRP::CConnectionAttemptEvent, LLRP::CConnectionCloseEvent, LLRP::CLLRPStatus, LLRP::CFieldError, LLRP::CParameterError, LLRP::CC1G2LLRPCapabilities, LLRP::CC1G2UHFRFModeTable, LLRP::CC1G2UHFRFModeTableEntry, LLRP::CC1G2InventoryCommand, LLRP::CC1G2Filter, LLRP::CC1G2TagInventoryMask, LLRP::CC1G2TagInventoryStateAwareFilterAction, LLRP::CC1G2TagInventoryStateUnawareFilterAction, LLRP::CC1G2RFControl, LLRP::CC1G2SingulationControl, LLRP::CC1G2TagInventoryStateAwareSingulationAction, LLRP::CC1G2TagSpec, LLRP::CC1G2TargetTag, LLRP::CC1G2Read, LLRP::CC1G2Write, LLRP::CC1G2Kill, LLRP::CC1G2Lock, LLRP::CC1G2LockPayload, LLRP::CC1G2BlockErase, LLRP::CC1G2BlockWrite, LLRP::CC1G2EPCMemorySelector, LLRP::CC1G2_PC, LLRP::CC1G2_CRC, LLRP::CC1G2SingulationDetails, LLRP::CC1G2ReadOpSpecResult, LLRP::CC1G2WriteOpSpecResult, LLRP::CC1G2KillOpSpecResult, LLRP::CC1G2LockOpSpecResult, LLRP::CC1G2BlockEraseOpSpecResult, and LLRP::CC1G2BlockWriteOpSpecResult.

void LLRP::CElement::clearSubParameterList (  tListOfParameters *  pParameterList  )

Clear a list of subparameters. For each entry apply removeSubParameter(). Parameters: [in]  pParameterList  The list of parameters to clear Returns: void Definition at line 70 of file ltkcpp_element.cpp. References removeSubParameterFromAllList().

virtual void LLRP::CElement::decodeFields (  CDecoderStream *  pDecoderStream  )  [pure virtual]

Virtual function provided by each specific element type to decode fields (simple values). Leaves pDecoderStream at first subparameter. Parameters: [in]  pDecoderStream  The stream from which to decode fields Returns: void Implemented in LLRP::CCUSTOM_MESSAGE, LLRP::CGET_READER_CAPABILITIES, LLRP::CGET_READER_CAPABILITIES_RESPONSE, LLRP::CADD_ROSPEC, LLRP::CADD_ROSPEC_RESPONSE, LLRP::CDELETE_ROSPEC, LLRP::CDELETE_ROSPEC_RESPONSE, LLRP::CSTART_ROSPEC, LLRP::CSTART_ROSPEC_RESPONSE, LLRP::CSTOP_ROSPEC, LLRP::CSTOP_ROSPEC_RESPONSE, LLRP::CENABLE_ROSPEC, LLRP::CENABLE_ROSPEC_RESPONSE, LLRP::CDISABLE_ROSPEC, LLRP::CDISABLE_ROSPEC_RESPONSE, LLRP::CGET_ROSPECS, LLRP::CGET_ROSPECS_RESPONSE, LLRP::CADD_ACCESSSPEC, LLRP::CADD_ACCESSSPEC_RESPONSE, LLRP::CDELETE_ACCESSSPEC, LLRP::CDELETE_ACCESSSPEC_RESPONSE, LLRP::CENABLE_ACCESSSPEC, LLRP::CENABLE_ACCESSSPEC_RESPONSE, LLRP::CDISABLE_ACCESSSPEC, LLRP::CDISABLE_ACCESSSPEC_RESPONSE, LLRP::CGET_ACCESSSPECS, LLRP::CGET_ACCESSSPECS_RESPONSE, LLRP::CGET_READER_CONFIG, LLRP::CGET_READER_CONFIG_RESPONSE, LLRP::CSET_READER_CONFIG, LLRP::CSET_READER_CONFIG_RESPONSE, LLRP::CCLOSE_CONNECTION, LLRP::CCLOSE_CONNECTION_RESPONSE, LLRP::CGET_REPORT, LLRP::CRO_ACCESS_REPORT, LLRP::CKEEPALIVE, LLRP::CKEEPALIVE_ACK, LLRP::CREADER_EVENT_NOTIFICATION, LLRP::CENABLE_EVENTS_AND_REPORTS, LLRP::CERROR_MESSAGE, LLRP::CUTCTimestamp, LLRP::CUptime, LLRP::CCustom, LLRP::CGeneralDeviceCapabilities, LLRP::CReceiveSensitivityTableEntry, LLRP::CPerAntennaReceiveSensitivityRange, LLRP::CPerAntennaAirProtocol, LLRP::CGPIOCapabilities, LLRP::CLLRPCapabilities, LLRP::CRegulatoryCapabilities, LLRP::CUHFBandCapabilities, LLRP::CTransmitPowerLevelTableEntry, LLRP::CFrequencyInformation, LLRP::CFrequencyHopTable, LLRP::CFixedFrequencyTable, LLRP::CROSpec, LLRP::CROBoundarySpec, LLRP::CROSpecStartTrigger, LLRP::CPeriodicTriggerValue, LLRP::CGPITriggerValue, LLRP::CROSpecStopTrigger, LLRP::CAISpec, LLRP::CAISpecStopTrigger, LLRP::CTagObservationTrigger, LLRP::CInventoryParameterSpec, LLRP::CRFSurveySpec, LLRP::CRFSurveySpecStopTrigger, LLRP::CAccessSpec, LLRP::CAccessSpecStopTrigger, LLRP::CAccessCommand, LLRP::CLLRPConfigurationStateValue, LLRP::CIdentification, LLRP::CGPOWriteData, LLRP::CKeepaliveSpec, LLRP::CAntennaProperties, LLRP::CAntennaConfiguration, LLRP::CRFReceiver, LLRP::CRFTransmitter, LLRP::CGPIPortCurrentState, LLRP::CEventsAndReports, LLRP::CROReportSpec, LLRP::CTagReportContentSelector, LLRP::CAccessReportSpec, LLRP::CTagReportData, LLRP::CEPCData, LLRP::CEPC_96, LLRP::CROSpecID, LLRP::CSpecIndex, LLRP::CInventoryParameterSpecID, LLRP::CAntennaID, LLRP::CPeakRSSI, LLRP::CChannelIndex, LLRP::CFirstSeenTimestampUTC, LLRP::CFirstSeenTimestampUptime, LLRP::CLastSeenTimestampUTC, LLRP::CLastSeenTimestampUptime, LLRP::CTagSeenCount, LLRP::CAccessSpecID, LLRP::CRFSurveyReportData, LLRP::CFrequencyRSSILevelEntry, LLRP::CReaderEventNotificationSpec, LLRP::CEventNotificationState, LLRP::CReaderEventNotificationData, LLRP::CHoppingEvent, LLRP::CGPIEvent, LLRP::CROSpecEvent, LLRP::CReportBufferLevelWarningEvent, LLRP::CReportBufferOverflowErrorEvent, LLRP::CReaderExceptionEvent, LLRP::COpSpecID, LLRP::CRFSurveyEvent, LLRP::CAISpecEvent, LLRP::CAntennaEvent, LLRP::CConnectionAttemptEvent, LLRP::CConnectionCloseEvent, LLRP::CLLRPStatus, LLRP::CFieldError, LLRP::CParameterError, LLRP::CC1G2LLRPCapabilities, LLRP::CC1G2UHFRFModeTable, LLRP::CC1G2UHFRFModeTableEntry, LLRP::CC1G2InventoryCommand, LLRP::CC1G2Filter, LLRP::CC1G2TagInventoryMask, LLRP::CC1G2TagInventoryStateAwareFilterAction, LLRP::CC1G2TagInventoryStateUnawareFilterAction, LLRP::CC1G2RFControl, LLRP::CC1G2SingulationControl, LLRP::CC1G2TagInventoryStateAwareSingulationAction, LLRP::CC1G2TagSpec, LLRP::CC1G2TargetTag, LLRP::CC1G2Read, LLRP::CC1G2Write, LLRP::CC1G2Kill, LLRP::CC1G2Lock, LLRP::CC1G2LockPayload, LLRP::CC1G2BlockErase, LLRP::CC1G2BlockWrite, LLRP::CC1G2EPCMemorySelector, LLRP::CC1G2_PC, LLRP::CC1G2_CRC, LLRP::CC1G2SingulationDetails, LLRP::CC1G2ReadOpSpecResult, LLRP::CC1G2WriteOpSpecResult, LLRP::CC1G2KillOpSpecResult, LLRP::CC1G2LockOpSpecResult, LLRP::CC1G2BlockEraseOpSpecResult, and LLRP::CC1G2BlockWriteOpSpecResult.

virtual void LLRP::CElement::encode (  CEncoderStream *  pEncoderStream  )  const [pure virtual]

Encode fields and subparameters. Parameters: [in]  pEncoderStream  Stream to encode Returns: void Implemented in LLRP::CCUSTOM_MESSAGE, LLRP::CGET_READER_CAPABILITIES, LLRP::CGET_READER_CAPABILITIES_RESPONSE, LLRP::CADD_ROSPEC, LLRP::CADD_ROSPEC_RESPONSE, LLRP::CDELETE_ROSPEC, LLRP::CDELETE_ROSPEC_RESPONSE, LLRP::CSTART_ROSPEC, LLRP::CSTART_ROSPEC_RESPONSE, LLRP::CSTOP_ROSPEC, LLRP::CSTOP_ROSPEC_RESPONSE, LLRP::CENABLE_ROSPEC, LLRP::CENABLE_ROSPEC_RESPONSE, LLRP::CDISABLE_ROSPEC, LLRP::CDISABLE_ROSPEC_RESPONSE, LLRP::CGET_ROSPECS, LLRP::CGET_ROSPECS_RESPONSE, LLRP::CADD_ACCESSSPEC, LLRP::CADD_ACCESSSPEC_RESPONSE, LLRP::CDELETE_ACCESSSPEC, LLRP::CDELETE_ACCESSSPEC_RESPONSE, LLRP::CENABLE_ACCESSSPEC, LLRP::CENABLE_ACCESSSPEC_RESPONSE, LLRP::CDISABLE_ACCESSSPEC, LLRP::CDISABLE_ACCESSSPEC_RESPONSE, LLRP::CGET_ACCESSSPECS, LLRP::CGET_ACCESSSPECS_RESPONSE, LLRP::CGET_READER_CONFIG, LLRP::CGET_READER_CONFIG_RESPONSE, LLRP::CSET_READER_CONFIG, LLRP::CSET_READER_CONFIG_RESPONSE, LLRP::CCLOSE_CONNECTION, LLRP::CCLOSE_CONNECTION_RESPONSE, LLRP::CGET_REPORT, LLRP::CRO_ACCESS_REPORT, LLRP::CKEEPALIVE, LLRP::CKEEPALIVE_ACK, LLRP::CREADER_EVENT_NOTIFICATION, LLRP::CENABLE_EVENTS_AND_REPORTS, LLRP::CERROR_MESSAGE, LLRP::CUTCTimestamp, LLRP::CUptime, LLRP::CCustom, LLRP::CGeneralDeviceCapabilities, LLRP::CReceiveSensitivityTableEntry, LLRP::CPerAntennaReceiveSensitivityRange, LLRP::CPerAntennaAirProtocol, LLRP::CGPIOCapabilities, LLRP::CLLRPCapabilities, LLRP::CRegulatoryCapabilities, LLRP::CUHFBandCapabilities, LLRP::CTransmitPowerLevelTableEntry, LLRP::CFrequencyInformation, LLRP::CFrequencyHopTable, LLRP::CFixedFrequencyTable, LLRP::CROSpec, LLRP::CROBoundarySpec, LLRP::CROSpecStartTrigger, LLRP::CPeriodicTriggerValue, LLRP::CGPITriggerValue, LLRP::CROSpecStopTrigger, LLRP::CAISpec, LLRP::CAISpecStopTrigger, LLRP::CTagObservationTrigger, LLRP::CInventoryParameterSpec, LLRP::CRFSurveySpec, LLRP::CRFSurveySpecStopTrigger, LLRP::CAccessSpec, LLRP::CAccessSpecStopTrigger, LLRP::CAccessCommand, LLRP::CLLRPConfigurationStateValue, LLRP::CIdentification, LLRP::CGPOWriteData, LLRP::CKeepaliveSpec, LLRP::CAntennaProperties, LLRP::CAntennaConfiguration, LLRP::CRFReceiver, LLRP::CRFTransmitter, LLRP::CGPIPortCurrentState, LLRP::CEventsAndReports, LLRP::CROReportSpec, LLRP::CTagReportContentSelector, LLRP::CAccessReportSpec, LLRP::CTagReportData, LLRP::CEPCData, LLRP::CEPC_96, LLRP::CROSpecID, LLRP::CSpecIndex, LLRP::CInventoryParameterSpecID, LLRP::CAntennaID, LLRP::CPeakRSSI, LLRP::CChannelIndex, LLRP::CFirstSeenTimestampUTC, LLRP::CFirstSeenTimestampUptime, LLRP::CLastSeenTimestampUTC, LLRP::CLastSeenTimestampUptime, LLRP::CTagSeenCount, LLRP::CAccessSpecID, LLRP::CRFSurveyReportData, LLRP::CFrequencyRSSILevelEntry, LLRP::CReaderEventNotificationSpec, LLRP::CEventNotificationState, LLRP::CReaderEventNotificationData, LLRP::CHoppingEvent, LLRP::CGPIEvent, LLRP::CROSpecEvent, LLRP::CReportBufferLevelWarningEvent, LLRP::CReportBufferOverflowErrorEvent, LLRP::CReaderExceptionEvent, LLRP::COpSpecID, LLRP::CRFSurveyEvent, LLRP::CAISpecEvent, LLRP::CAntennaEvent, LLRP::CConnectionAttemptEvent, LLRP::CConnectionCloseEvent, LLRP::CLLRPStatus, LLRP::CFieldError, LLRP::CParameterError, LLRP::CC1G2LLRPCapabilities, LLRP::CC1G2UHFRFModeTable, LLRP::CC1G2UHFRFModeTableEntry, LLRP::CC1G2InventoryCommand, LLRP::CC1G2Filter, LLRP::CC1G2TagInventoryMask, LLRP::CC1G2TagInventoryStateAwareFilterAction, LLRP::CC1G2TagInventoryStateUnawareFilterAction, LLRP::CC1G2RFControl, LLRP::CC1G2SingulationControl, LLRP::CC1G2TagInventoryStateAwareSingulationAction, LLRP::CC1G2TagSpec, LLRP::CC1G2TargetTag, LLRP::CC1G2Read, LLRP::CC1G2Write, LLRP::CC1G2Kill, LLRP::CC1G2Lock, LLRP::CC1G2LockPayload, LLRP::CC1G2BlockErase, LLRP::CC1G2BlockWrite, LLRP::CC1G2EPCMemorySelector, LLRP::CC1G2_PC, LLRP::CC1G2_CRC, LLRP::CC1G2SingulationDetails, LLRP::CC1G2ReadOpSpecResult, LLRP::CC1G2WriteOpSpecResult, LLRP::CC1G2KillOpSpecResult, LLRP::CC1G2LockOpSpecResult, LLRP::CC1G2BlockEraseOpSpecResult, and LLRP::CC1G2BlockWriteOpSpecResult.

void LLRP::CElement::removeSubParameterFromAllList (  CParameter *  pParameter  )

Delete a subparameter from m_listAllSubParameters. Called by the accessor functions setXXX (to remove prior reference) clearXXX(). Parameters: [in]  *pParameter  The parameter to delete Returns: void Definition at line 60 of file ltkcpp_element.cpp. References m_listAllSubParameters. Referenced by clearSubParameterList().

EResultCode LLRP::CElement::toXMLString (  char *  pBuffer, int  nBuffer )

Format an element as XML text. Parameters: [in]  pBuffer  Pointer to the buffer to store the result [in]  nBuffer  size of the result buffer Returns: EResultCode Result code from the operation Definition at line 1085 of file ltkcpp_xmltextencode.cpp.

---

The documentation for this class was generated from the following files:

• ltkcpp_base.h
• ltkcpp_element.cpp
• ltkcpp_xmltextencode.cpp

---
